  • ACUO UR-8203AG-3X2 WATER DISPENSER
< >

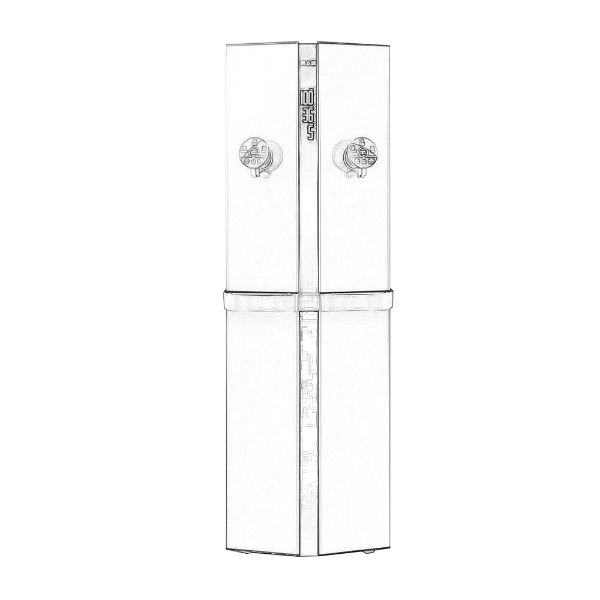

ACUO UR-8203AG-3X2 WATER DISPENSER

Model:UR-8203AG-3X2

ProductFeatures:Five-stage filtration, cold, warm and hot water are all boiled beforedispense to ensure low bacteria count.  Automatic sterilization system & Multi-Guard filterfilter-Ensure water quality.Energy saving-automatic sleep mode,Eco-smart waterheating.User-friendly design-LED lighted dual panels & braille code panels.Suitable for aiports,hospitals,universities,etc


SERVICE HOTLINE: 13480180918
Details

Model

UR-8203AG-3X2

Type

Cold/Warm/Hot

Voltage

220V

Hot Power Consumption

2000W

Cold Power Consumption

245W

Hot Tank Volume

15L

Warm Tank Volume

20L

Cold Tank Volume

5L

Hot Water Output

25L/HR

Cold Water Output

7L/HR

Pamel Material

Laminated Color Metal

Interface Panel

ABS Steel Plastic

Color

Grey

Dimensions(inches)

20.47*19.69*59.06

Filtration system

Five Stage Filter

 A Two slanted controlpanels-No more queues to wait & comfortable usage

 Automatic sterilization system & Multi-Guard filter filter-Ensure water quality

○ Energy saving-automatic sleep mode,Eco-smart water heating

○ Built-in water filtrationsystem

 User-friendly design-LEDlighted dual panels & braille code panels

○ Safety designs-hot waterlock,self-diagnostics system

○ Suitable for public usageif office pantries,aiports,hospitals,universities,etc



CLEAN&EFFICIENT

All water temperatureshave been boiled and filtered before use.

 Allows users to pre-settime and period of complete sterilization(1-7time per week,on

   different hours each day with boiling water and flushing of all pipes. System automatically

○ Activates sterilization according to its settings.

 Multi-guard filter targetsmicroorganisms effectively and ensures bacteria count will fall

   Within nationaldrinking water standards.



SUPERIOR HEAT EXCHANGE SYSTEM

 Large quantities of warm water supply at low energy costs using patented water-to-water

   Heat exchange system (patent number 563847)

○ Lowers hot watertemperature to warm water temperature,and simultaneously uses this

   energy exchangeto heat up hot water efficiently.



WATER TEMPERATURE PRESERVATION

○ Hot water: can be set atany temperature between 50°C to 98°C, or turned off.

 Cold water: can be set atany temperature between 10°C to 30°C, or turned off.

 Cold and warm water alert:can be set to stop outlet when cold and warm water

   temperatureexceeds 40°C to 60°C, or turned off.



LARGE HOT WATER CAPACITY

Re-boil

 Activates heating to 100°Canytime. Icon flashes when hot temperature is too low

  and boiling isactivated.


FILTER PEPLACEMENT ALERT

 Notification can be setfor up to 5 filters based on both time (mo/yr) and usage capacity

  (liter).



LARGE FSC-LCD DISPLAYLARGE FSC-LCD DISPLAY

 Innovative LCD screendisplaying cold,warm and hot water temperatures.



SLEEP MODE

 Allow users to pre-setperiod of “sleep mode“ to conserve energy when water dispenser

   is not inuse.System automatically activates sleep mode and resumes to normal operations

   according to itssettings.

○ 15 minutes dormant mode: system goes dormant after 15minutes of no usage, automatically activates when used.

 Eco-smart temperature heating adjusts the dispenser’s water temperatures relative to

    External temperatures to conserve energy.
